SPIROL introduces new Compression Limiters

SPIROL has introduced the new Series CL6000 lightweight, lead-free, Aluminium Precision Machined Compression Limiters. Compression Limiters are designed to reinforce high stress joints in plastic assemblies where bolts are used to connect two components to each other. They protect the plastic from excessive compression by absorbing the load when the bolt is tightened to the recommended tightening torque. This ensures the durability and reliability of the joint throughout the product’s lifespan.

The CL6000 is machined from 2024 grade aluminium which provides the best combination of strength, corrosion resistance, machineability and cost. The CL6000 aluminium Compression Limiters are 40% stronger and 1/3 the weight of the same Compression Limiter manufactured from brass.

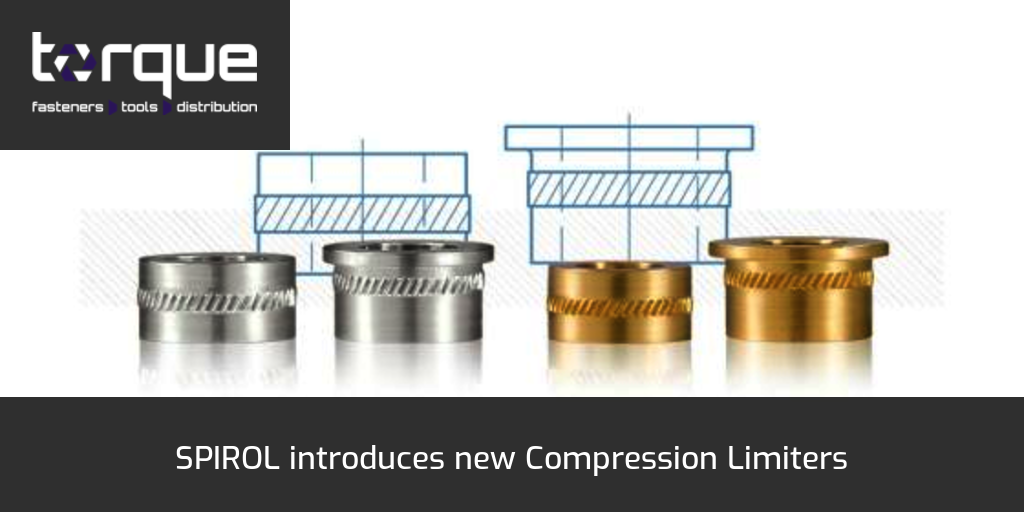

For applications that require extra bearing surface for the mating component, the CL6100 Headed Compression Limiter has all of the same features of the CL6000, with the addition of a head. In addition, for applications that require a galvanic alternative to aluminium, SPIROL is simultaneously launching the new CL8000 brass precision machined Compression Limiters, as well as the CL8100 headed brass version.

SPIROL offers several different standard types of Compression Limiters to meet specific application requirements and assembly methods.  The current Series CL600 & CL800 lines of machined Compression Limiters are being replaced with the enhanced CL6000 and CL8000.

The new standard Precision Machined Compression Limiters are available in a wide range of standard sizes, in both aluminium and brass, and in headed and non-headed configurations. Download the latest SPIROL Compression Limiters Design Guide for the specifications of all standard Compression Limiters, as well as information about how to design-in and install the most appropriate Compression Limiter for your assembly!

The function and total overall cost of the assembly vary drastically based on the type of Compression Limiter used in the application. SPIROL's Engineering team will help determine the most appropriate Compression Limiter based on the specific application and assembly requirements.

For complimentary design assistance, contact the nearest SPIROL location or simply request Technical Support.
